Steel Strut Channel Accessories Strut Channel Fitting 1/2/3/4 Hole Flat Straight Custom

Brand Name:	Shengyu
MOQ:	Negotiable
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

GB/T19001-2016/1S09001:2015 GB/T24001-2016/IS014001:2015 GB/T28001-2011/0HSAS18001:2007

Material:

Steel

Surface Treatment:

Powder Coating\Plating\Polishing

Product Name:

Precision Stamping Metal Parts

Process Laser:

Cutting Bending Stamping

Service:

Custom Sheet Metal Fabrication Services

Type:

Metal Steel Bracket

Standard Or Nonstandard:

Standard

Color:

Silver

Design Style:

Industrial, Engineering

Feature:

Durable, Corrosion Resistant, High Strength, Easy

Packaging Details:

Standard packaging

Highlight:

steel strut channel accessories

steel strut channel fitting

custom strut channel fitting

Product Description

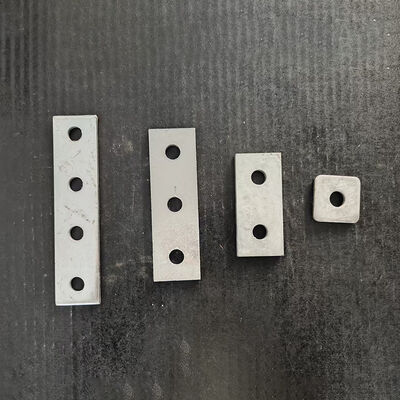

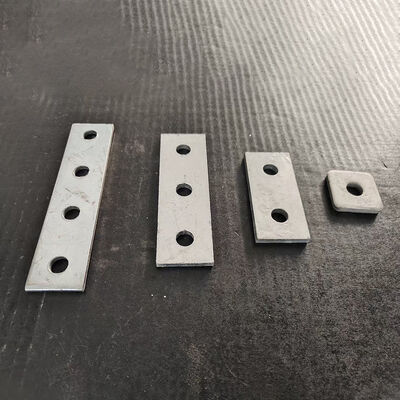

Strut Channel Accessories Strut Channel Fitting 1-2-3-4Hole Flat Straight Strut Fitting Bracket Custom Approved

Product Description

Our strut channel fittings are crafted from high-strength carbon steel with a hot dip galvanized finish, delivering exceptional corrosion resistance and long-term durability. Designed for easy installation, this complete set includes flat, L, T, and triangle connectors, fully compatible with 41x41 / 41x21 strut channels. Ideal for mechanical, electrical, and solar mounting systems, these fittings provide reliable structural connections that

Our Hot Dip Galvanized Strut Channel Fittings are a complete connector set for structural strut channel systems, offering versatile connections for various applications. The set includes flat plates, L-angle brackets, T-shaped connectors, and triangle brackets, all precision-engineered for strength and ease of use.

Technical Parameters

Product Name	4 Hole Flat Straight Connecting Plate
Material	High Quality Carbon Steel / Mild Steel Q195 Q235
Surface Treatment	Zinc Plated / Electro Galvanized / Hot Dip Galvanized
Plate Thickness	2.5mm - 5mm
Overall Length	70mm-120mm
Overall Width	18mm-30mm
Hole Quantity	1/2/3/4 Holes
Hole Center Spacing	Standard Spacing / Custom Spacing
Product Type	Flat Straight Connecting Bracket
Feature	Anti-rust, High Strength, Easy Installation, Stable Connection
Application	Building Frame, Shelf Support, Solar Bracket, Mechanical Equipment, Furniture Reinforcement
Package	Standard Export Carton + Pallet

Features

Mechanical bite connection: Accessories (such as nuts, locks) are matched with continuous triangular teeth on the edge of the C-shaped steel coil to form a physical bite. It is strictly prohibited to rely solely on frictional force to prevent loosening caused by vibration.

High adaptability and adjustability: relying on the bar/oval holes and tooth groove positioning on the back of the C-shaped steel, it supports stepless adjustment of installation position and angle, without the need for welding or secondary drilling.

Standardization and completeness: Strictly match the national/industry standard C-shaped steel section (such as 41 × 41, 52 × 41, etc.) to ensure interchangeability and system stability between different brands of accessories.

Anti corrosion and durability synergy: The material and surface treatment (hot-dip galvanizing, zinc aluminum magnesium, etc.) are usually consistent with the main C-shaped steel, ensuring synchronous corrosion resistance life of the overall system.

Convenient and efficient construction: supports rapid assembly of bolts, and some accessories have shock-absorbing and noise reducing lining (such as EPDM), significantly shortening the construction period and reducing noise. ‌‌

Steel Strut Channel Accessories Strut Channel Fitting 1/2/3/4 Hole Flat Straight Custom

FAQ:

Can you provide some samples for me?

Yes, we can provide free samples to you, but the freight need you to bear. Please send sample list by email.

Can provide a catalogue for me?

The electronic version can be submitted by e-mail or the hard copies of catalogs are free but freight should be collected.

Can you guaratee your products?

Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

Why should I choose you?

(1) Contact us with your detailed inquiry, you will be replied within 24 hours.

(2) You are promised to obtain the best quality, price and service.

(3) We'd like to provide samples for your confirm.

(4) Wide excellent experiences with after-sale service.

(5) Every process will be checked by responsible QC which insures every product's quality.

How does your company do regarding quality control?

Each year we have quality supervision department inspection, and issue inspection reports, each batch of goods will be strictly controlled, the company's internal will have quality regulation, to ensure that every batch of products qualified and best quality.
